Why a huge canvas tote bag Still Sags After Testing

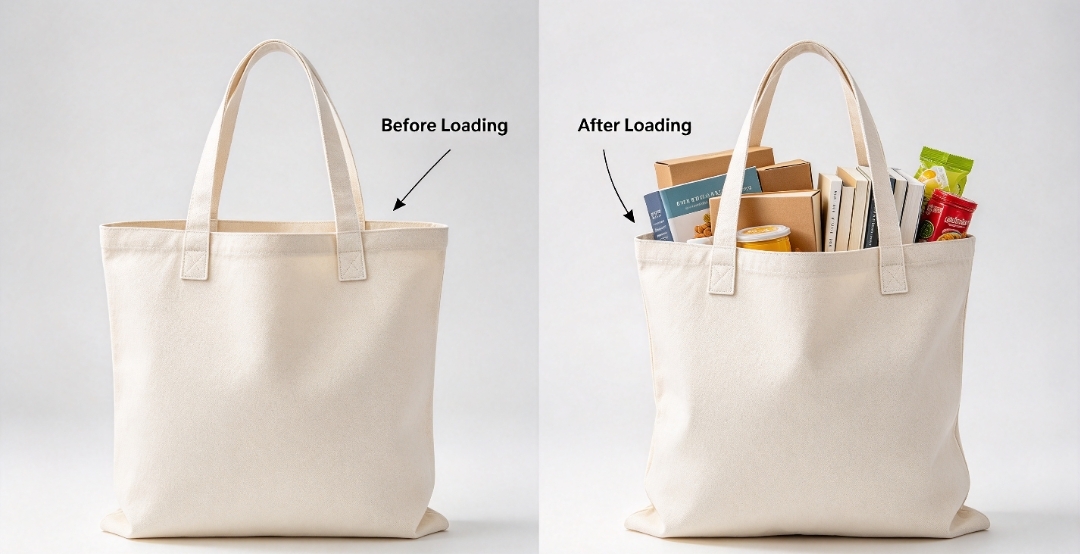

A pre-production sample was approved using high-oz canvas, with the base insert and Box-X reinforcement stitching fully completed. Yet after mass production, the huge canvas tote bag still sagged and deformed at the bottom when fully loaded.

Many projects use standard-spec heavy canvas tote bags, with the fabric, base insert, and stitching all produced according to the technical documentation. Even so, the finished bags may still fail to hold their shape. Many developers focus only on fabric weight and the base board while overlooking the mechanical effect of the bag’s overall geometry. Even when more cost is put into heavier canvas and a thicker base, an imbalanced ratio between the gusset and the bag body width can still cause bending and distortion.

This is where the familiar “approved sample, failed bulk order” problem comes from. During the early review stage, XINHUI Bag Factory checks the dimensional relationship between the bag body and gusset to identify structural risks before production, rather than simply confirming fabric and sewing specifications.

A structured canvas tote bag and Base Support

For a structured canvas tote bag, a rigid base insert is often assumed to be the best fix for bottom sagging. In actual production, however, a structured canvas tote bag with a removable base insert can develop a specific failure mode: if the insert is not properly retained, it can slide back and forth inside the bag under load, shifting the load path and causing localized bottom collapse.

This issue usually does not show up when the sample is empty. It appears only after the bag is repeatedly loaded with heavy items and shaken or moved around. To keep the removable-base design, add webbing loops on the inside bottom to secure the four corners of the insert and limit lateral movement.

For heavy canvas tote bags, the same principle applies: a thicker base alone cannot compensate for poor structural balance. The same check should be built into sample reviews for heavy canvas tote bags, even when the order uses a standard construction.

Handle Drop and Bottom Stress

The handle drop height of a canvas tote can amplify sagging risk. With the same fabric, base insert, and sewing construction, a handle drop of more than 28–30 cm creates greater torsional force when the bag is carried by hand or over the shoulder, pulling on the bottom corners.

Fashion-driven designs often require longer handles, so simply increasing canvas thickness is not enough. Extend the handle anchor stitching 6–8 cm farther downward so the load transfers into the lower body panel and the pressure on the bottom is spread over a larger area. This is especially important for a huge canvas tote bag intended for heavier everyday loads. For a structured canvas tote bag, the same handle-to-body load path should be reviewed during engineering.

Canvas Shrinkage in a huge canvas tote bag

Pre-treatment of canvas fabric is another factor that should not be overlooked. Heavy canvas that has not been sanforized and pre-shrunk may look structurally sound in a new sample, but repeated wash cycles can relax the fibers and gradually pull the bottom downward.

At the fabric purchasing stage, the technical specification should state the AATCC-135 dimensional change requirement. A corresponding test report should be requested for every fabric lot. Organic cotton and recycled cotton canvas typically show greater fiber relaxation, so corner and edge stitching should be reinforced at the same time to compensate.

At the fabric receiving stage, XINHUI Bag Factory conducts sampling-based wash-shrinkage tests and checks the AATCC-135 results. For canvas such as organic cotton and recycled cotton that is more prone to relaxation, the factory also provides recommendations for additional corner reinforcement to reduce the risk of post-wash deformation.

Logo Printing in a huge canvas tote bag

Custom logo printing can also affect the long-term shape retention of a canvas tote. When thick layers of printing ink are applied to a load-bearing area, the ink can form a relatively rigid film over the yarn surface. As the canvas stretches under load, the ink layer restricts yarn movement, concentrating stress around the printed area and accelerating localized stretching and deformation.

For the bottom and handle anchor zones, avoid large areas of heavy ink coverage whenever possible. Water-based, penetrating inks are generally preferable because they can move with the fabric fibers instead of creating a rigid layer that intensifies localized stress. This matters particularly for heavy canvas tote bags that are expected to carry weight repeatedly.

Heavy canvas tote bags and Eccentric Load Testing

Many sample approval processes use only static, evenly distributed loads. Static loading can check the bending resistance of the base insert, but it does not replicate real-world eccentric loading.

In daily use, groceries, books, and other heavy items often shift toward one side of the bag. This uneven loading increases the stress on the bottom-corner seams. During sampling of large canvas bags, do more than place weights evenly across the base. An eccentric-load test should also be performed, with the weight concentrated on one side to observe bottom-corner deformation and seam condition. This test is particularly useful for heavy canvas tote bags designed for mixed, uneven loads.

At many factories, testing stops at evenly distributed static loading. XINHUI Bag Factory adds eccentric-load and repeated lift-and-set-down simulations during sample evaluation so that issues from real use can be identified before bulk production. The factory operates under an ISO 9001 quality management system, and test records covering fabric, printing, and sewing can be provided to customers for reference.

A Practical Reinforcement Option

There are several compromise solutions on the market that balance a crisp appearance with easy folding and storage when the bag is empty. The entire bag does not need to be lined with rigid material. Instead, reinforce only the bottom, bottom corners, and handle attachment points while keeping the side walls soft and naturally flexible.

This approach works well for retail-oriented structured canvas tote bag designs, but its limits need to be clearly defined. It is not suitable for continuous loads above 15 kg.

For a huge canvas tote bag, these issues are rarely obvious in an empty sample. Most only appear after repeated loading, washing, and movement. Applying the measures above can significantly reduce later sagging complaints, but it cannot guarantee zero deformation in every operating condition. Final performance still depends on the actual load, frequency of use, and handling conditions.

For projects developing canvas tote products, XINHUI Bag Factory can review the target load, dimensions, and fabric specification and provide structural optimization recommendations for a structured canvas tote bag based on experience from similar projects.

FAQ

Q1: Does a larger gusset always make a canvas tote less likely to sag?

No. A larger gusset can help distribute the load, but if the gusset exceeds the reasonable proportion of the bag body width, it increases the unsupported bottom span and therefore the bending moment. The gusset size needs to be matched to the overall body width. When using a larger gusset, the base insert thickness and corner reinforcement should also be upgraded. Simply enlarging the gusset does not eliminate sagging risk.

Q2: What can be done when a finished canvas tote already has a sagging bottom?

The room for modification is limited once the bags are finished. Adding an external transverse webbing strap can slightly improve load distribution, but it cannot restore canvas fibers that have already been permanently stretched.

Once the fabric has developed permanent deformation, the bag cannot be returned to its original factory-flat condition. For later production runs, the structural parameters should be adjusted. As a customer-service measure, finished bags can be paired with an external removable base insert.

Q3: For promotional gift totes without a rigid base, how thick should the double-layer bottom fabric be?

A double-layer bottom generally provides practical protection only up to about 8–10 kg. Use a double-layer canvas bottom of 14 oz or above, together with a transverse load-bearing webbing strap whose ends connect to the handle anchor points.

Above 10 kg, a double-fabric construction can still bend at the bottom. For promotional orders, the actual load limit should be communicated to the customer in advance, especially when the product is sold as a huge canvas tote bag.
